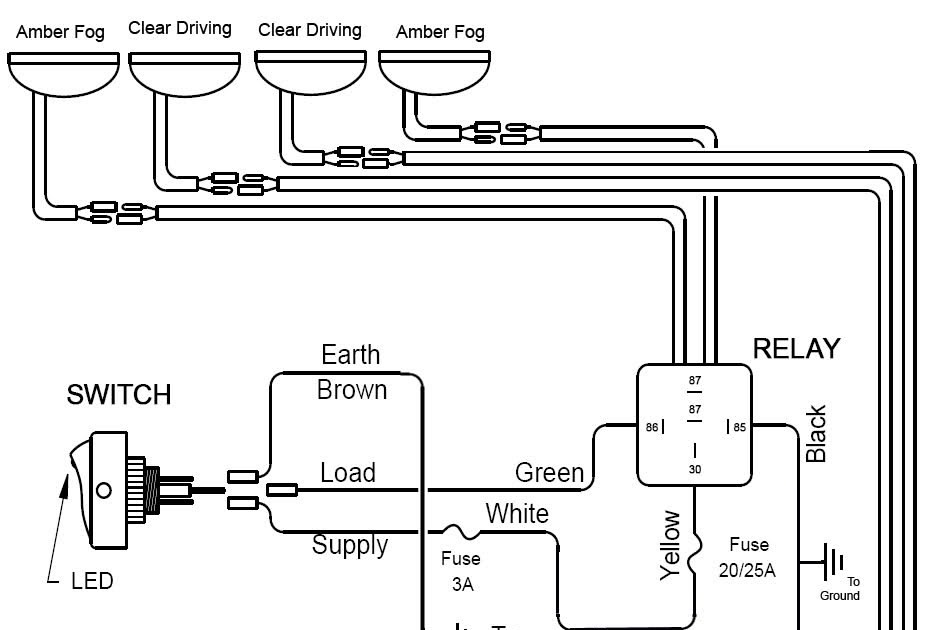

Use the kc diagram above and tie the white switch wire to the light blue switched auxiliary power wire, and then follow the rest of the kc wiring diagram. If by chance there is not a fuse in slot #19 in the fuse blox, install a 3 amp fuse there. There is most likely already a 20 amp fuse there (for your cigarette lighter), and that's fine. This wiring diagram shows how a standard 2 light wired to 1 switch (kc wiring harness #6308) should be installed and setup.
The 6308 harness comes with: 30 amp illuminated switch with panel. Wiring instructions for kc pro6 led light bar thank you for choosing kc hilites. We take pride in building the highest quality, best engineered. Adjusting your light bar. Adventure further and explore off road lights, light bars, rock lights and adventure products for jeeps, toyotas, trucks, suvs & utv / atv. Wiring diagram for most kc hilites relay type 12v light kits. Wiring my kc lights on my 2001 jeep wrangler. Easy guideyellow and white lines from relay go to positive on battery. black line from relay gets grounded to b.
